SZGH-CNC990TDb-3 is 3axis lathe & turnning controller, with 8.4 inch LCD, and support the PLC laddter, macro, and international G code, with stronger water-and oil-proofing function.

1.Feature:

1) 3 Axis(X Y Z) economic type Lathe CNC Controller ,with 8.4 inches display(800x600)

2) Support ATC , PLC and macro function.

3) New USB interface,it shupports the file operation and program running in flash disk.

4) 128MB Memory ,100Mb user store room

5) English programming, english user manual, english operation interface, and english technical supports

6) Analog voltage output of 0~10V in two channels, support double spindles

7) Electric Turret & Binary code Turret, Max: 99 Pcs of tools

2.Product Advantage

3.Specification:

1. Feeding axes function
2. • Minimum command unit: 0.001mm
3. • Position command range: +/- 99999.999
4. • Max speed: 30 m/minFeeding speed:0.001-15m/min
5. • G00 rapid override: Total 8 levels: 0~150%,real-time adjusting
6. • Feeding override: Total 16 levels: 0~150%,real-time adjusting
7. • Spindle override: Total 16 levels: 5%~150%,real-time adjusting
8. • Interpolation mode: Interpolation of linear ,arc ,thread and rigid tapping
9. • Auto chamfering
10. Thread
11. • Acceleration and deceleration funciton
12. • Common thread(follow the spindle) / Rigid thread
13. • Single-headed/Multi thread of straight ,taper and therminal suface in metric system/inch system,wqual and variable pitch thread
14. • Thread retractin length ,angle and speed characteristics can be set
15. • Thread pitch:0.1~1000.000mm or 0.1~99 tooth/inch
16. • Rapid traverse: linear type or S type
17. • The starting speed,finishing speed and time of acceleration and deceleration are set by parameter
18. Spindle function
19. • Analog voltage 0~10V output in two channels ,support two-spindle control
20. • Spindle encoder feedback in one channel,the resolution of spindle encoder can be set
21. • Spindle speed: It is set by speed parameter,max spindle speed also coressponding to 10V
22. • Spindle override: Total 16 levels: 5%~150%,real-time adjusting
23. • Spindle constant surface speed control
24. • Ragid tapping
25. Tool Function
26. •Tool length compensation
27. • tool nose radius compensation (C type)
28. • Tool wearing compensation
29. • Method of setting tools: Tool-setting in fixed position ,trial cutting tool -setting,return to reference point,auto tool setting
30. • Tool offset exexuting mode: Rewriting coordinate mode,tool traverse mode
31. Precision compensation
32. • Backlash compensation/Pitch error compensation in memory type
33. PLC function
34. • The refresh cycle: 8ms
35. • PLC program download by USB interface
36. • PLC program can be customized edit
37. • Basic I/Os : 40*24 I/Os , can be edit freely

4.Application: CNC lathe machinery; lathe & turning center; CNC Grinder machine;

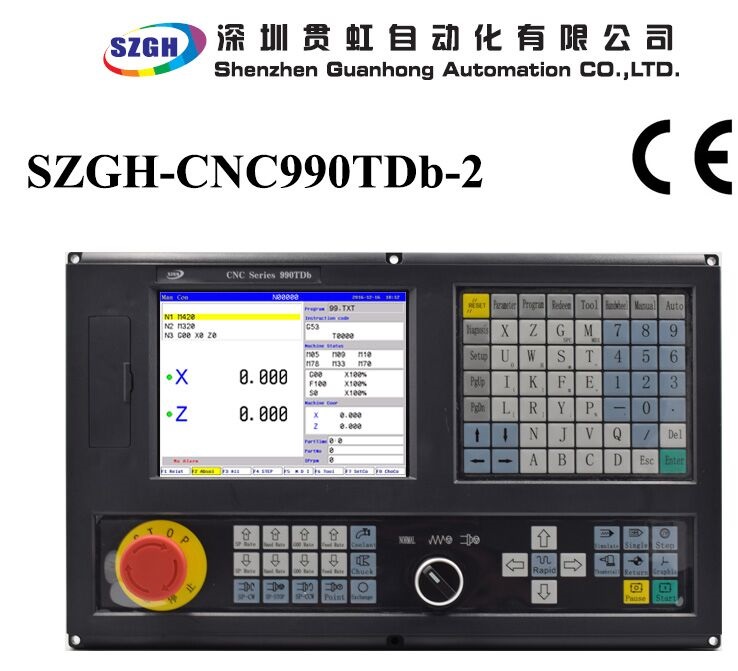

5. Product actual picture :
