    Three To Five Axis Cnc Milling Controller , Computerized Numerical Control Cnc Machine Controllers

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : CNC1500MDb-5
    Certification : CE
    Price : negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

    Three To Five Axis Cnc Milling Controller , Computerized Numerical Control Cnc Machine Controllers


    Three To Five Axis Cnc Milling Controller , Computerized Numerical Control Cnc Machine Controllers


    Features:


    1) adopt modbus technology , and ARM, DSP , and FPGA , very high performance.

    2) vertical CNC milling controller with USB and 2-6 axis more beautiful interface
    3) 128Mb user store room, not limit for programming quantity.
    4) 640x480 8 inch real colour LCD displayer, I/O 56X32
    5) with addtional operation panel and MPG, supply power
    6) max speed 60m/min, progressing speed 0.01-30m/min
    7) USB movable U disc copy interface.
    8) RS232 interface.U flash DNC function
    9) Spindle servo speed control/spindle frequency convertion speed control.
    10) Manual pulse generator.
    11) PLC programming and macro function
    12) English menu, program and interface, full screen edition
    13) it can be customazied to the display by clients' company logo and company
    14) able to work with absolutely encoder motor , support the tool magazine function such as: umbrella type, line type, disc type etc

    Support ATC function!!(Linear Tool Magazine)!


    Application: CNC milling machinery; machining center; milling center; wood working machine; numerically control grinder


    Technical Specifications


    controllable axesX.Y.Z.A.B,C six axes
    linkage axesArc 2-3 axes, liner 2-6 axes
    pulse equivalentX.Y.Z.A.B,Caxes0.001mm
    pulse equivalentX.Y.Z.A.B,Caxes0.001mm
    max speedX.Y.Z.A.B,C60000mm/min
    cutting speed1-10000mm/min
    program size rangemin input unit0.001mm± 99999.999
    99 tools management
    program code ISO-840 international standard
    program coordinate system definition ISO-841
    chassis protection complies with regulation of IP43
    Tool compensatelength compensate, tool top compensate, C compensate(G40,G41,G42)
    input and outputI/O 56X32
    feeding speed0.01-30m/min
    straight line interpolationG01
    arc interpolationG02/G03
    screw thread cuttingG32
    end face cutting circleG94
    screw thread cutting circleG92
    mixed mode screw thread cutting circleG76
    inch/metric programmingG20 and G21
    feeding mode commandG98 and G99

    Standard G codes list


    G code
    groups
    function
    G00
    01
    Fast decides
    G01
    The straight line inserts makes up
    G02
    Inserts along the circle makes up/the spiral line to insert makes up CW: The spiral motion spiral line inserts makes up the 2 circular arcs insert makes up the axis synchronization migration other axes. The instruction method only is simply adds on is not the circular arc inserts makes up the axis the shifting shaft
    G03
    The counter circle inserts makes up/the spiral line to insert makes up CCW
    G04
    00
    pause
    G15
    17
    Polar coordinate instruction cancellation
    G16
    Polar coordinate instruction: The polar coordinate (radius and angle), the angle to is chooses the plane the first axis to anti-clockwise changes, but the negative direction is clockwise changes .
    Form :
    G** G## G16
    G00 IP
    G**Expresses the plane chosen
    G## mean G90Work piece coordinate system original point
    G91Current position
    Assigns the polar coordinate and zero point
    G17
    02
    Choose the X Yplane
    XX axis or its parallel axis
    YY axis or its parallel axis
    ZZ axis or its parallel axis
    G18
    Choose the Z X plane
    G19
    Choose the Y Z plane
    G20
    06
    Inch input
    G21
    Millimetre input
    G28/G281/G282
    /G283/G284
    00
    Go to first reference point
    G30/G301/G302
    /G303/G304
    Go to 2,3,4 reference point
    G26
    ZXY axis go to program original point
    G261
    X axis go to program original point
    G262
    Y axis go to program original point
    G263
    Z axis go to program original point
    G264
    A axis go to program original point
    G265
    B axis go to program original point
    G40
    07
    Cancel tool radius compensate
    G41
    tool radius compensateleft
    G42
    tool radius compensateright
    G43
    Tool lenthen positive compensate
    G44
    08
    Tool lenthen negative compensate
    G45
    00
    Tool adding offset
    G46
    Tool subtact offset
    G47
    Tool adding two multiple offset
    G48
    Tool subtact two multiple offset
    G49
    08
    Cancel tool lengthen compensate
    G37
    11
    Cancel scale zoom
    G36
    Enable scale zoomformatG36 X_Y_Z_R_
    G12
    22
    Cancel programmer mirror
    G11
    Enable programmer mirror
    G52
    00
    Set local coordinate
    G53
    14
    Chocie coordinate
    G54
    Chocie work coordinate 1
    NoteThese six work coordinate save in CNCuser may choice any one
    G55
    Chocie work coordinate 2
    G56
    Chocie work coordinate 3
    G57
    Chocie work coordinate 4
    G58
    Chocie work coordinate 5
    G59
    Chocie work coordinate 6
    G60
    15
    exactitude stop
    G64
    Continue path work
    G68
    16
    rotate coordinateformat
    G17
    G18 G68 a-b- R-; R:Angle
    G19
    G69
    Cancel rotate coordinate
    G73
    09
    Drill deep hole cycleformat
    G73 X-Y-Z-R-Q-F- L -
    Zdistance from R to hole bottom
    Rdistance from original to R
    Qfeed depth every time
    Ffeed speed
    Lrepeat time
    G74
    Left Tap cycleformatG74X-Y-Z-R-P-F- L -
    G80
    Cancel cycle mode
    G81
    Drill cycleformat G81 X-Y-Z-R-F- L -
    G82
    Drill cycleformatG82 X-Y-Z-R-P-F- L -
    G83
    Drill cycleformat
    G83 X-Y-Z-R-Q-F- L -P-
    G84
    Right Tap cycle formatG84 X-Y-Z-R-P-F- L -
    G85
    Drill cycleformat
    G85 X-Y-Z-R-F- L -
    G86
    Drill cycleformatG86 X-Y-Z-R-F- L -
    G89
    Drill cycle
    G89 X-Y-Z-R-P-F-L-
    G90
    03
    Absolute program
    G91
    Increase program
    G98
    10
    Go back to origorinal point

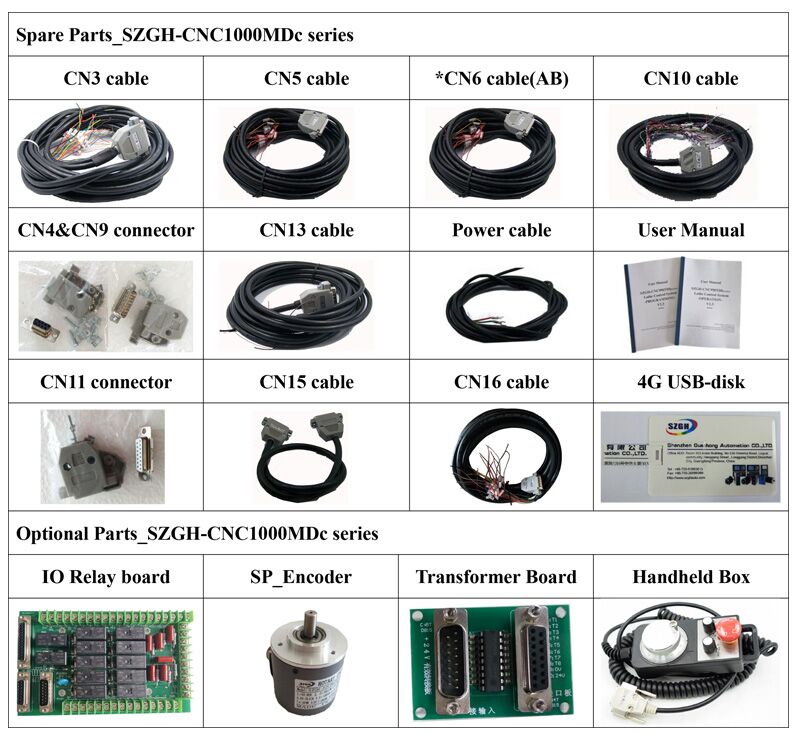

    Product show



    Appearance Dimensio
