2HSS86H Closed Loop Stepper Driver / Easy Servo Driver integrated
servo control technology into the digital step driver. Very precion
and high performance. And support pulse + direction, and pulse + negative direction, and dual pulse etc..
Specifications
| Model | Curren(A) | Voltage(A) | Matched motor(A) | Weight(KG) | Dimension(mm) | Control signal |
| 2HSS86H | 8.0A | DC(24-110V) AC(60-80V) | 86/110 | 0.6 | 151 X 96 X 49 | differential |
Feature
1) External adjustable microstepping function (New)
2) CCW and CW adjustable and easy operation motor’ forward and
reverse(New)
3) Full closed loop control
4) Encoder 1000PPR
5) Nearly 100% output torque
6) Fast response, high speed
7) Input under position control mode: A. Pulse+ directionB. Pulse
+negative directionC. Dual pulseD. Communication
8) Optical isolation servo reset input interface ERC
9) Optical isolation alarm output interface ALM
10) Current loop width: (-3dB) 2KHz (typical value )
11) Velocity loop width:500Hz (typical value)
12) Position loop width:200Hz (typical value)
13) Encoder input interface: differential input (26LS32)
14) Can download parameter with RS232 cable or text display.
15) Protection for over current, over voltage, under voltage, over
heat, over speed, over proof.
16) Green LED means on, red LED means protection or in fault
status.
| Model | Phase | Power | Configuration | Matching Motors(NEMA) |
| Voltage(V) | Current(A) |
| | | AC | DC | Peak | | NEMA |
| 2HSS57 | 2phase | — | 24-48 | 5.7 | RS232 | 23 |
| 2HSS86H | 2phase | 50-80 | 24-110 | 8.6 | RS232 | 34 |
| 2HSS1108 | 2phase | 80-110 | — | 8.0 | | 42 |
| 2HSS2208 | 2phase | 110-220 | — | 8.0 | | 43 |
| 3HSS1108H | 3 phase | 110-220 | — | 8.0 | | 43 |
Mechanical Dimensions (mm)

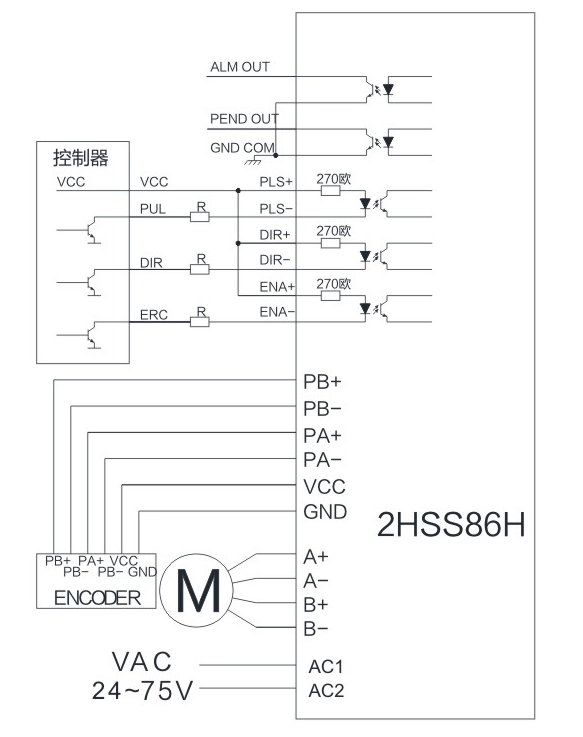

Wiring Diagram
Diagram:
Sample: Connection for servo system:
This driver provide + 5V to the encoder, 80mA. It adopt quadrupler
counting mode, encoder resolutionx4 = pulses per revolution for
servo motor .
Product picture:
