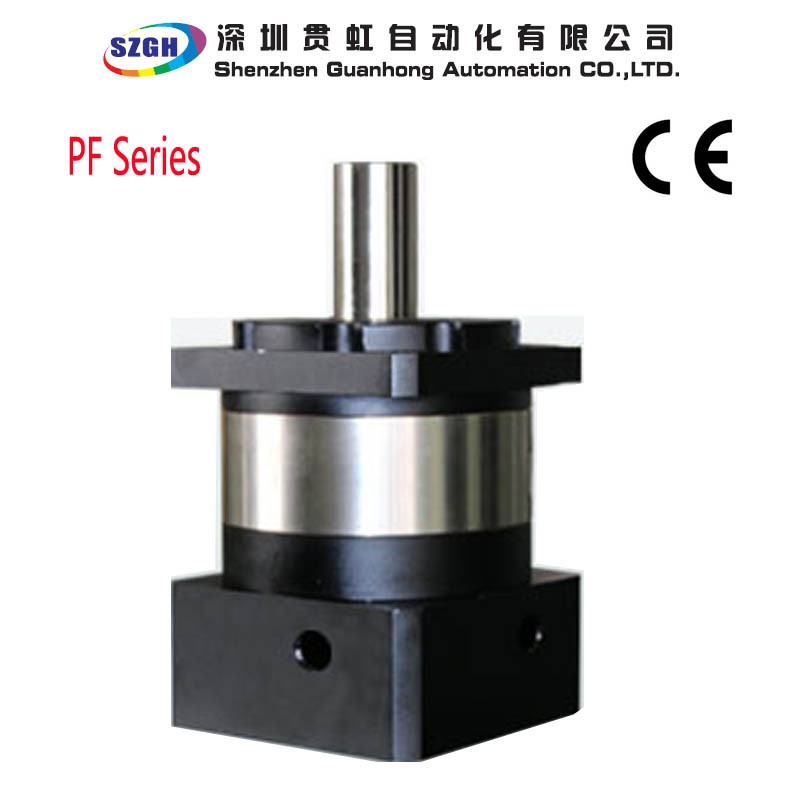

    Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : PF Series
    Certification : CE
    Price : negotiation
    Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

    Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor


    Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor


    1. Compact and lighter
    • Weight from 1.5 kg to 80 kg (approximate);

    • Length from 90.5mm to 250mm;

    2. Integral gear ratio

    • Ratio from 3 to 1000;

    3. Small backlash and all S type gear reducer are provided with tiny backlash within 10 min-arc.

    4. Suitable for combination with any kind of servo motor.

    5. Total enclosed design


    Specification for Gear Reducer
    ModelPL60PL80PL90PL120PL150PL160PL180
    Continuous output torque (Kgf*m/Nm)3.4/348.5/848.5/8423.4/23053/52053/520114/1120
    Max.torque of load (Kgf*m/Nm)2.5 times torque
    Radius load on output shaft (kgf)51962986158638631331
    Gear educer inertia(Kg*cm2)0.3060.730.731.093.093.099.35
    Range of output shaft of servomotor diameterwithin 14within 19within 19within 24within 42within 42within 55
    L1 weight (kg)1.63.32.8516.415.237
    L2 weight (kg)2.14.33.47.217.616.246.4
    L3 weight (kg)2.65.348.218.918.5
    Lead weight0.120.650.6511.51.52.9

    Ratio Table of Gear Reducer
    ModelL1L2L3
    PL603,4,59,12,15,20,2527,36,45,48,60,75,100,125
    PL80/90/1203,4,5,79,12,15,20,21,25,28,35,4945,48,60,75,80,100,125,140,175,245,343
    PL150/1603,5,7,109,12,15,20,,25,28,30,40,50,7060,75,80,100,150,200,300,400,500,700,1000
    PL1803,5,7,109,15,21,25,30,35,49,50,70,100
