    3 Axis DSP CNC Computerized Numerical Control System For Automatic Equipment

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : SZGH-CNC1000GDb-3
    Certification : CE
    Price : negotiation
    Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

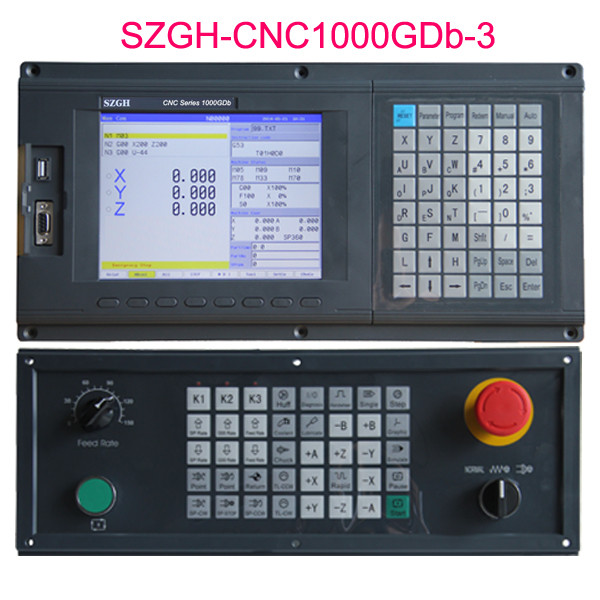

    3 Axis DSP CNC Computerized Numerical Control System For Automatic Equipment


    3 Axis DSP CNC Computerized Numerical Control System For Automatic Equipment


    Feature:


    1) 3 Axis standard series CNC Grinder controller
    2) Support PLC and macro function, ARM core, and DSP , FPGA
    3) 800x600 8.4 inch real color LCD displayer ,customized interface logo
    4) The max speed is 300m/min, feeding speed is 150m/min
    5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
    6) High anti-jamming switch power(220VAC -> 24VDC)
    7) 64MB Memory , 32Mb user store room
    8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
    9) Analog voltage output of 0~10V in two channels,support double spindles
    10) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
    11) I/O : 56X32 , user can be edited freely I/O 24X24
    12) cutter offset : C
    13) English menu, program and interface, full screen edition

    Application : CNC grinding machinery , CNC flat grinder , and specially automatic equipment



    3 Axis DSP CNC Computerized Numerical Control System For Automatic Equipment

    Our cooperation partner application :
