Closed Loop Stepper Driver / Easy Servo Driver nema 34 Full closed
loop control

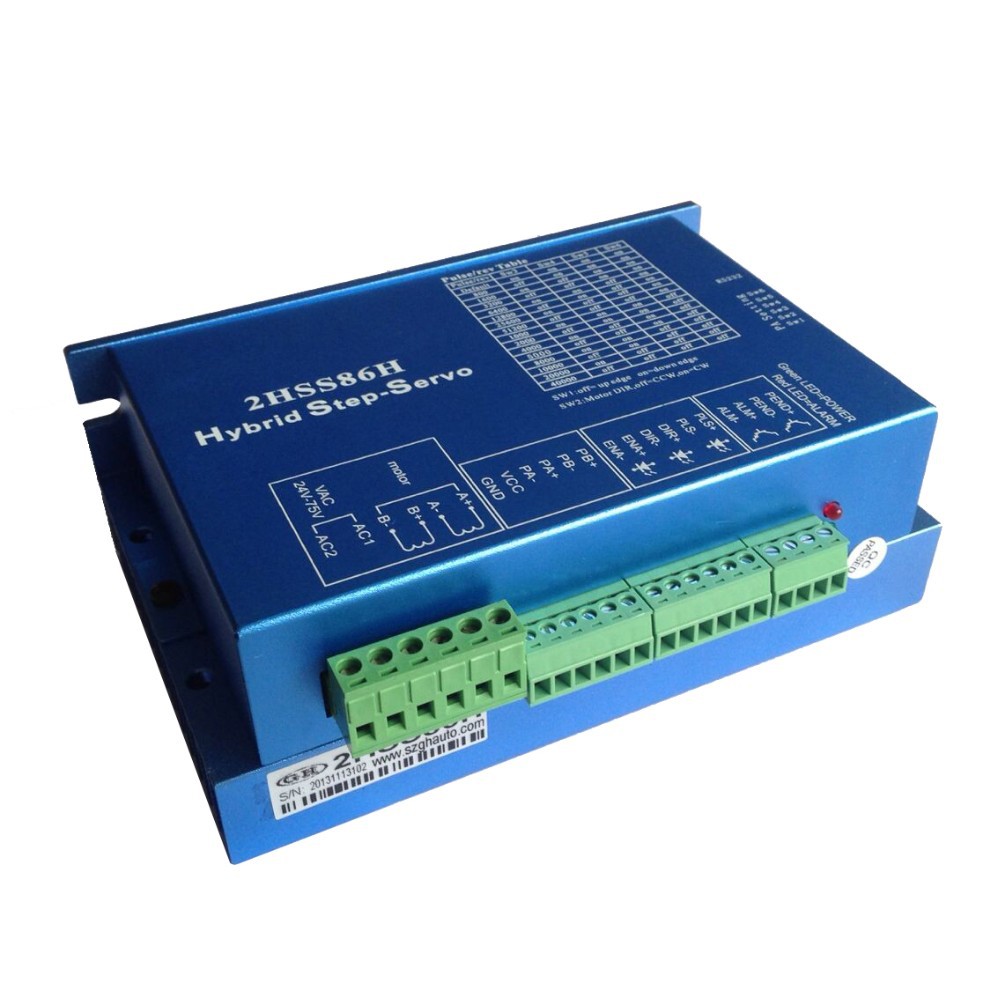

2HSS86H Closed Loop Stepper Driver / Easy Servo Driver can work
with Nema 32 closed loop stepper motor, integrated servo control
technology into the digital step driver. Very precion and high
performance. And support pulse+direction, and pulse +negative
direction, and dual pulse etc..
Technical Specification
1) Full closed loop control
2) Encoder 1000PPR
3) Nearly 100% output torque
4) Fast response, high speed
5) Input under position control mode:
A. Pulse+ direction
B. Pulse +negative direction
C. Dual pulse
D. Communication
6) Optical isolation servo reset input interface ERC
7) Optical isolation alarm output interface ALM
8) Current loop width: (-3dB) 2KHz (typical value )
9) Velocity loop width:500Hz (typical value)
10) Position loop width:200Hz (typical value)
11) Encoder input interface: differential input (26LS32)
12) Can download parameter with RS232 cable or text display.
13) Protection for over current, over voltage, under voltage, over
heat, over speed, over proof.
14) Green LED means on, red LED means protection or in fault
status.
Application
CNC Machinery,printing equipment, packaging equipment, textile
equipment, laser processing equipment,
robotics, automated production lines, such as processing precision,
processing efficiency and reliability, and other
requirements of the relatively high equipment.
1.Industrial packing: plastic bag +foam boxes+ carton +wooden
pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients' requirement
About Shipping
We can ship to worldwide and declare lower value for customs.
Most orders will delivery goods within 3-5 business days after
payment received (Except Holiday).
Our Services
Certified actual products - We have a zero-tolerance policy for
asset recovery vendors.
Lowest package prices -Always offer lower price than other
companies.
Professional technical engineer team- possible fastest response and
support to client’ application demand.
Quality guarantee – Free, one-years warranty and life-long
maintenance. Any quality problem, SZGH promise to refund.
Fast, professional and reliable International delivery – flexible
and low cost delivery solution for clients.
Free payment mode by T/T, L/C, western union and Paypal can be
available.
