    3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : SZGH08-3-9.5-1.5/2.2-4-1500
    Certification : CE
    Price : negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

    3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

    3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine


    Features



    CW&CCW

    Speed Error +/- 1RPMAcceleration/Deceleration time of 3000RPM1second

    Independent Quasi Stop

    Positioning with High Precision(0.03)
    Rigid TappingMax speed of tapping is 3000RPM ,Min of dental work is M3
    Function of C-AxisIndexing Accuracy: +/-1 PulseTurning/Milling0.01rpm
    Cutting in Low SpeedOverload(3 times holding torque),ensure stablity of cutting,applied in casting process
    High-Speed Precision MachiningConstant power output over 4000RPM,stable ratoting speed,ensure finish

    Strong Applicability


    Match for CNC System , PLC etc.

    Powerful Development

    Custome Manufacturing

    Technical Specifications


    Specifications:
    Rated Power(W)1.5
    Rated Voltage(V)9.5
    Rated Current(A)3.7
    overload within 30minutesPower(kw)2.2
    Torque(Nm)14
    Current(A)6
    Rated Frequency(HZ)50
    Rated Speed(RPM)1500
    Max Speed with rated torque6000
    Max Speed(RPM)8000
    Rotor Inertia(kg.m^2)0.0058
    Power of Blower(W)-
    Weight(KG)25

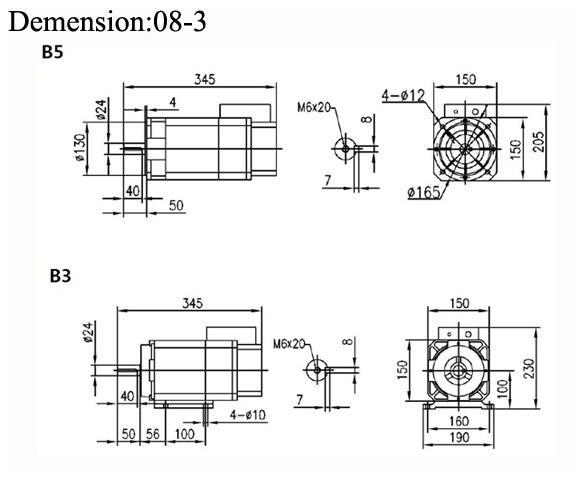

    Appearance Dimension

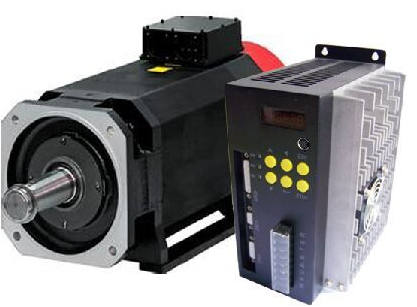

    Product picture
