    2PH 220V High Torque Servo Motor With PL120 Gear Box , High Speed Ac Motor 1200 Watt

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : SZGH-11120BC
    Certification : CE
    Price : negotiation
    Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

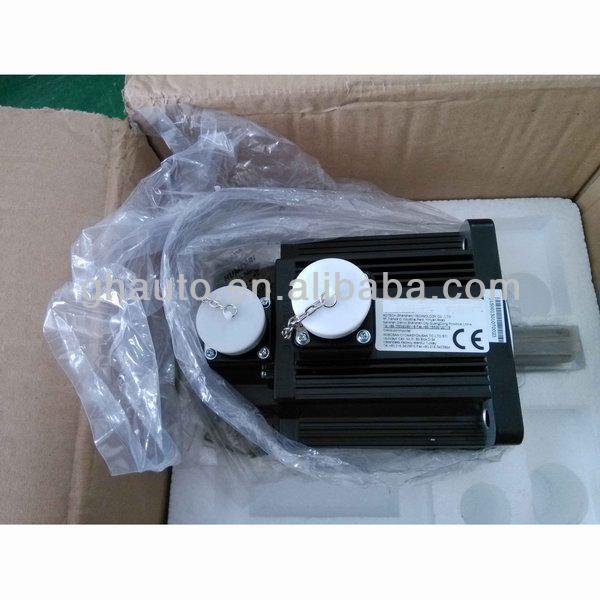

    2PH 220V High Torque Servo Motor With PL120 Gear Box , High Speed Ac Motor 1200 Watt

    11120BC is 1200W servo motor, this model is very hot sale , optimum matching with our AC servo driver to real ize optimum servo performance

    Feature:

    Rated Power (W): 1200 W
    Continuous Torque:6.0Nm
    Peak Torque: 12 Nm
    Rated Rotation speed (r/min): 2000 RPM
    Encoder Resolution (PPR): 2500
    Rated Voltage (V): 220
    Rated Current (A): 3.0
    Rotor Inertia (kg.m2x10-4): 7.6
    Application Environment:
    Work temperature: 0°C~ 40°C
    Relative Humidity: < 90% RH
    Altitude : < 1000 m
    Non corrosive ,non flammable gas and dust and oil-mist
    Matched Driver: 030M2 SERVO DRIVER

    Torque-frequency character diagram:


    2PH 220V middle inertia1.2kw CNC servo motor and driver

    Product Dimension :

    2PH 220V middle inertia1.2kw CNC servo motor and driver

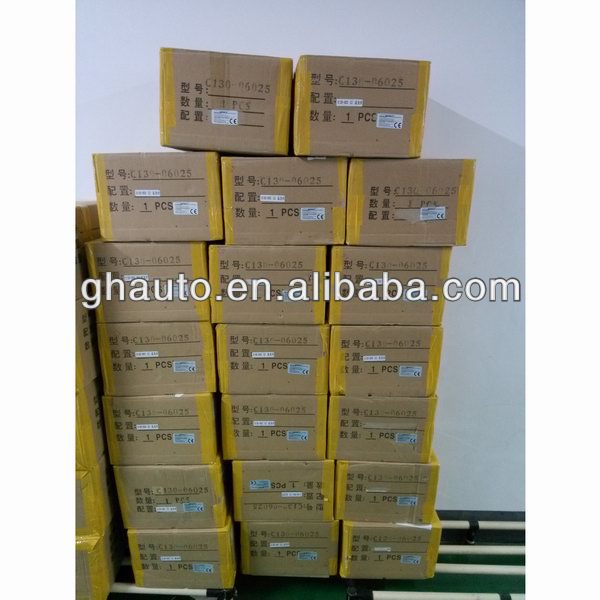

    Packaging & Shipping

    Packing detail:

    1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

    2.Commercial packing: plastic bag+ foam boxes + carton

    3.As the clients' requirement

    Delivery Detail: Normally ready goods and stock within 2-5days

    2PH 220V middle inertia1.2kw CNC servo motor and driver2PH 220V middle inertia1.2kw CNC servo motor and driver

    2PH 220V middle inertia1.2kw CNC servo motor and driver
