12.6kgm^210e-4 6.0NM 1.5KW CNC Servo Motor 2500RPM Synchronous Motor

12.6kg*m^2*10e-4 6.0NM 1.5KW CNC Servo Motor 2500RPM Synchronous Motor

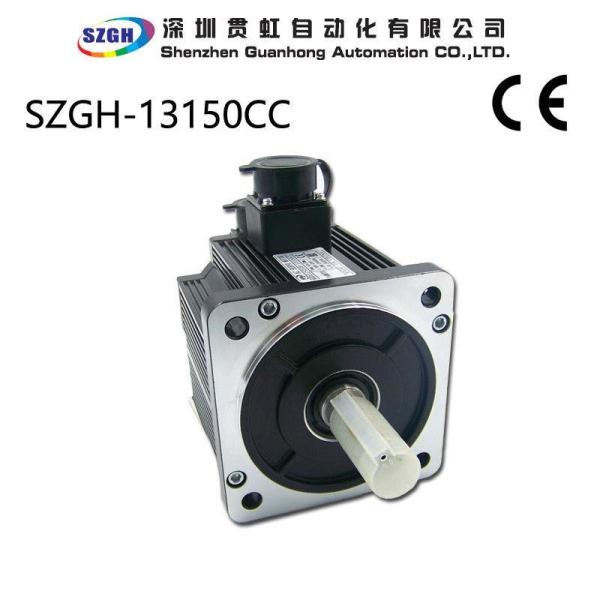

SZGH-13150CC is 1.5KW 6.0NM 2500RPM ac servo motor , high speed, high precision, low motor noise and low heating performance, while at the cost of normal servo systems.

There are two kinds type servo driver, SZGH-301,that matching for 1.5KW servo motor.

There is also one dual servo driver, SZGH-302, that can control two pcs of 1.5KW servo motors synchronously.

Application

CNC Machinery, printing equipment, packaging equipment, textile equipment, laser processing equipment,

robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other

requirements of the relatively high equipment.

Specifications

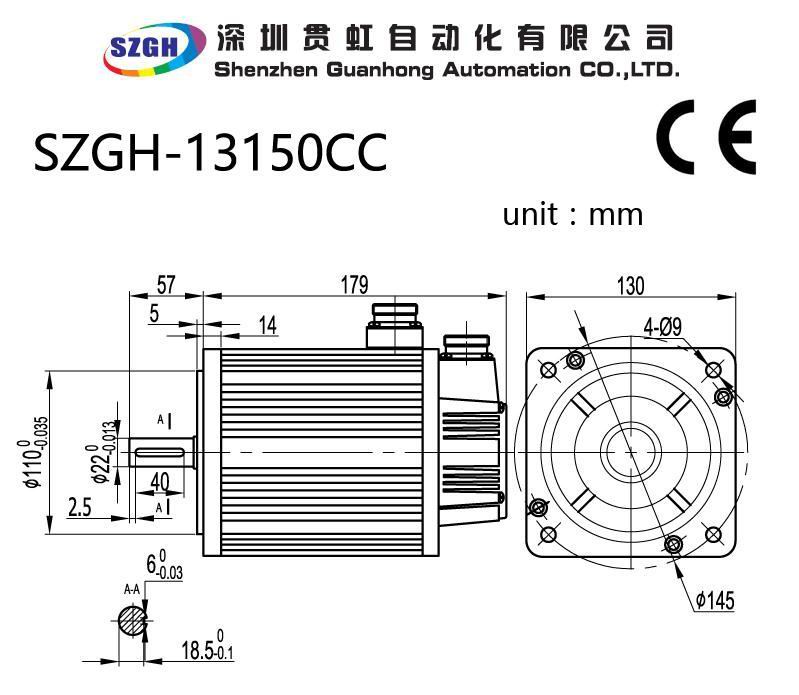

Dimension

Model	Frame size (mm)	Rated Power (w)	Torque(N.M)		Rated Speed (r/min)	Rated Current (A)	Rated Voltage (V)	Rotor Inertia (kg.㎡x10-4)	Encoder Resolution (PPR)		Motor Length (mm)	brake motor (/T) Length (mm)	Diameter of Axle (mm)
Model	Frame size (mm)	Rated Power (w)	Continuous	peak	Rated Speed (r/min)	Rated Current (A)	Rated Voltage (V)	Rotor Inertia (kg.㎡x10-4)	Increment type	Absolute type	Motor Length (mm)	brake motor (/T) Length (mm)	Diameter of Axle (mm)
SZGH-04005D	40	50	0.16	0.32	3000	0.4	220	0.025	2500	17 bit	75	109	8
SZGH-04010D	40	100	0.32	0.64	3000	0.6	220	0.051	2500	17 bit	90	124	8
SZGH-06020DC	60	200	0.64	1.9	3000	1.2	220	0.175	2500	17 bit	116	164	14
SZGH-06040DC	60	400	1.27	3.9	3000	2.8	220	0.29	2500	17 bit	141	189	14
SZGH-06060DC	60	600	1.9	5.73	3000	3.5	220	0.39	2500	17 bit	169	217	14
SZGH-08075DC	80	750	2.4	7.1	3000	3	220	1.82	2500	17 bit	151	191	19
SZGH-08075BC	80	750	3.5	10.5	2000	3	220	2.63	2500	17 bit	179	219	19
SZGH-09075DC	86	750	2.4	7.1	3000	3	220	2.45	2500	17 bit	150	198	16
SZGH-09075BC	86	750	3.5	10.5	2000	3	220	3.4	2500	17 bit	172	220	16
SZGH-09100CC	86	1000	4	12	2500	4	220	3.7	2500	17 bit	182	230	16
SZGH-11060DC	110	600	2	6	3000	2.5	220	3.1	2500	17 bit	159	233	19
SZGH-11080DC	110	800	4	12	2000	3.5	220	5.4	2500	17 bit	189	263	19
SZGH-11120DC	110	1200	4	12	3000	5	220	5.4	2500	17 bit	189	263	19
SZGH-11120BC	110	1200	6	12	2000	5	220	7.6	2500	17 bit	219	293	19
SZGH-11180DC	110	1800	6	18	3000	6	220	7.6	2500	17 bit	219	293	19
SZGH-13100CC	130	1000	4	12	2500	4	220	8.5	2500	17 bit	166	223	22
SZGH-13130CC	130	1300	5	15	2500	5	220	10.6	2500	17 bit	171	228	22
SZGH-13150CC	130	1500	6	18	2500	6	220	12.6	2500	17 bit	179	236	22
SZGH-13150AC	130	1500	10	25	1500	6	220	19.4	2500	17 bit	213	294	22
SZGH-13200CC	130	2000	7.7	22	2500	7.5	220	15.3	2500	17 bit	192	249	22
SZGH-13230AC	130	2300	15	30	1500	9.5	220	27.7	2500	17 bit	241	322	22
SZGH-13260CC	130	2600	10	25	2500	10	220	19.4	2500	17 bit	209	290	22
SZGH-13380CC	130	3800	15	45	2500	13.5	220	27.7	2500	17 bit	231	312	22
SZGH-13380CC	130	3800	15	45	2500	10	380	27.7	2500	17 bit	231	312	22
SZGH-15360AC	150	3600	18	36	2000	17	220	46	2500	17 bit	248	321	28
SZGH-15360AC	150	3600	18	36	2000	9.5	380	46	2500	17 bit	248	321	28
SZGH-18270CC	180	2700	17.2	43	1500	10.5	220	34	2500	17 bit	226	298	35
SZGH-18270CC	180	2700	17.2	43	1500	6.5	380	34	2500	17 bit	226	298	35
SZGH-18300CC	180	3000	19	47	1500	12	220	38	2500	17 bit	232	304	35
SZGH-18300CC	180	3000	19	47	1500	7.5	380	38	2500	17 bit	232	304	35
SZGH-18450CC	180	4500	21.5	53	2000	16	220	47	2500	17 bit	243	315	35
SZGH-18450CC	180	4500	21.5	53	2000	9.5	380	47	2500	17 bit	243	315	35
SZGH-18290BC	180	2900	27	67	1000	12	220	61	2500	17 bit	262	334	35
SZGH-18290BC	180	2900	27	67	1000	7.5	380	61	2500	17 bit	262	334	35
SZGH-18370BC	180	3700	35	70	1000	16	220	86	2500	17 bit	292	364	35
SZGH-18370BC	180	3700	35	70	1000	10	380	86	2500	17 bit	292	364	35
SZGH-18430AC	180	4300	27	67	1500	16	220	61	2500	17 bit	262	334	35
SZGH-18430AC	180	4300	27	67	1500	10	380	61	2500	17 bit	262	334	35
SZGH-18550CC	180	5500	35	70	1500	24	220	86	2500	17 bit	292	364	35
SZGH-18550CC	180	5500	35	70	1500	12	380	86	2500	17 bit	292	364	35
SZGH-18750CC	180	7500	48	96	1500	20	380	95	2500	17 bit	346	418	35

We Can Support Total CNC Control System!!!
