    4 axis 128MB Double Channels Type CNC Lathe & Milling Controller

    Ask Lasest Price
    Brand Name : SZGH
    Model Number : CNC2000MTDb-4
    Certification : CE
    Price : negotiation
    Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard/MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : within 3-5 days upon receipt of full payment
    • Product Details
    • Company Profile

    4 axis 128MB Double Channels Type CNC Lathe & Milling Controller

    4 axis 128MB Double Channels Type CNC Lathe & Milling Controller
    Features

    1) 800x600 8 inch real color LCD displayer.

    2) Support PLC and macro function, and automatic tool exchange function .
    3) 32Mb user store room, 2-channel analog
    4) 32 input, and 32 output.
    5) Touch screen main and sub panel.
    6) High anti-jamming switch power.
    7) USB movable U disc copy interface.
    8) RS232 interface.
    9) Spindle servo speed control/spindle frequency convenient speed control.
    10) Max screw processing thread pitch is 1000MM
    11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
    12) C cutter offset function and binary encode tool .
    13) support the customized' application solution by client' logo and company name
    14) SZGH-CNC2000T/MDb series is double channel and connector for CNC milling and lathe machine , it is able to work with two pcs CNC milling machine , or two pcs CNC lathe machine at same time, also for CNC milling and lathe machine.

    Application: CNC lathe machine,;CNC milling machine ; CNC machine center

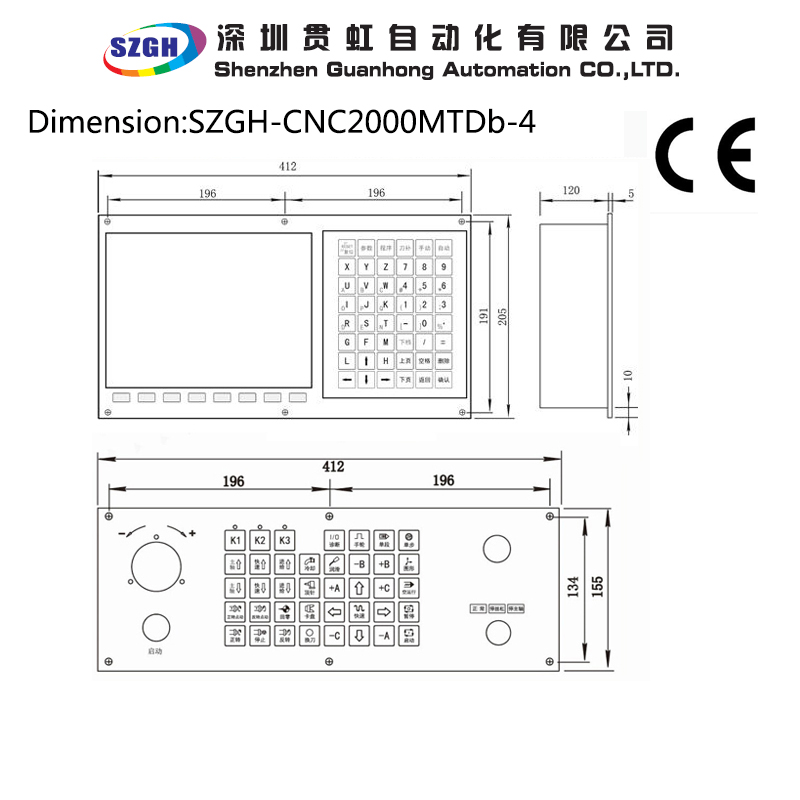

    Product Size or drawing



    Technical Specifications


    1.System constructions

    32 bits high performance, low power consumption industrial grade ARM microprocessor.
    64MB memory, and coordinate is 3 axis
    32Mb user store room.
    640x480 8 inch real colour LCD displayer.
    Touch screen main and sub panel.
    High anti-jamming switch power.
    USB movable U disc copy interface.
    RS232 interface.
    Spindle servo speed control/spindle frequency convertion speed control.
    Manual pulse generator.
    2.System technical parameter

    controllable axesX,Z,C/Y 3 axes
    linkage axesArc 3 axes, liner 3 axes.
    pulse equivalentX,Z,C/Y,A,Baxes0.001mm
    max speedX,Z,C/Y,A,B60000mm/min
    cutting speed1-10000mm/min.
    min input unit0.001mm
    program size range± 99999.999
    99 tools management.
    controllable liner vertical type or revolving disc type tool changer.
    program codeISO-840 international standard.
    program coordinate system definition:ISO-841.
    chassis protection complies with regulation of IP43.
    3.System function
    Auto-diagnosis function
    All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc.
    shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
    Compensation function
    automatic backlash compensation.
    tool radius automatic compensation.
    tool radius automatic offset and sharp angle transition.
    leading screw pitch error automatic compensation.
    Abundant instruction system
    scaling up/down instruction.
    mirror machining instruction.
    mutiple tool offset instruction.
    program cycle, jump, call and different program ending.
    multiple positioning instruction:starting point,setting fixed point,etc.
    linera, circular,spiral line interpolation instruction.
    program management instructions: program cycle, call, transfer and different program ending method, etc
    6 workpeices coordinates system .
    64MB memory, and coordinate is 3 axis
